Aiyima B01 Bluetooth Amplifier with Subwoofer Output

RM 262.00
- +
icon-cart Add to Cart
Home

Our take

AIYIMA B01 2.1 Channel Bluetooth Amplifier Receiver with Subwoofer Output, 50W+50W+100W Amplifier Bluetooth 5.0/RCA/U-Disk DC12-24V Class D Integrated Amp with DC24V Power Adapter.

Multiple Audio Inputs

Bluetooth 5.0/Stereo RCA/U-disk three input ways, one AUX input, connect wired analog signal input; Bluetooth wireless input can connect with mobile phone, computer and other Bluetooth devices; U-disk support MP3, WMA, APE, FLAC, WAV...

With DC Power Adapter

DC 12-24V Power Bluetooth Amplifier with DC 24V power supply, with Subwoofer output, can connect Powered subwoofer, support the frequency adjustment of the subwoofer, you can adjust the bass frequency according to your needs

With Treble Bass Adjust

Support the bass frequency adjustment of the left and right satellite boxes, making the left and right speaker output more playable; in addition, the left and right speakers can also be used when the subwoofer is not connected

Multiple Channel

2.0 channel / 2.1 channel / 2.2 channel multi Channel Output, left and right channel 50W+50W, subwoofer 100W, with Bluetooth 5.0, high quality Bluetooth receiver, and the internal uses 2 NE5532 op amps, one for the left and right channel output, one for the subwoofer output

All aluminum alloy shell, heavy gold PCB, build quality is surprisingly solid, nice touch! The power circuit is completely separate from the audio circuit, minimizing interference for clear sound


Product details

Aiyima B01 Bluetooth Amplifier with Subwoofer Output 12.jpg

Multi Audio Output Connect Modes

  • 2.0 Channel Audio system, connect a pair passive speaker
  • 2.1 Channel Audio system, connect a pair of passive speaker and passive subwoofer
  • Powered Subwoofer Output individual adjustment
  • With remote control
  • With Bass treble control
  • With DC 19V Power Supply

Notice: U-disk input is prior to Bluetooth and RCA input, so please make sure U-disk has been pulled out if you want Bluetooth or RCA input.


Aiyima B01 Bluetooth Amplifier with Subwoofer Output 13.jpg

Multi Audio Input Ways

Bluetooth 5.0 audio input, stable, efficient and faster, compatible with phones, tablets etc. Bluetooth devices

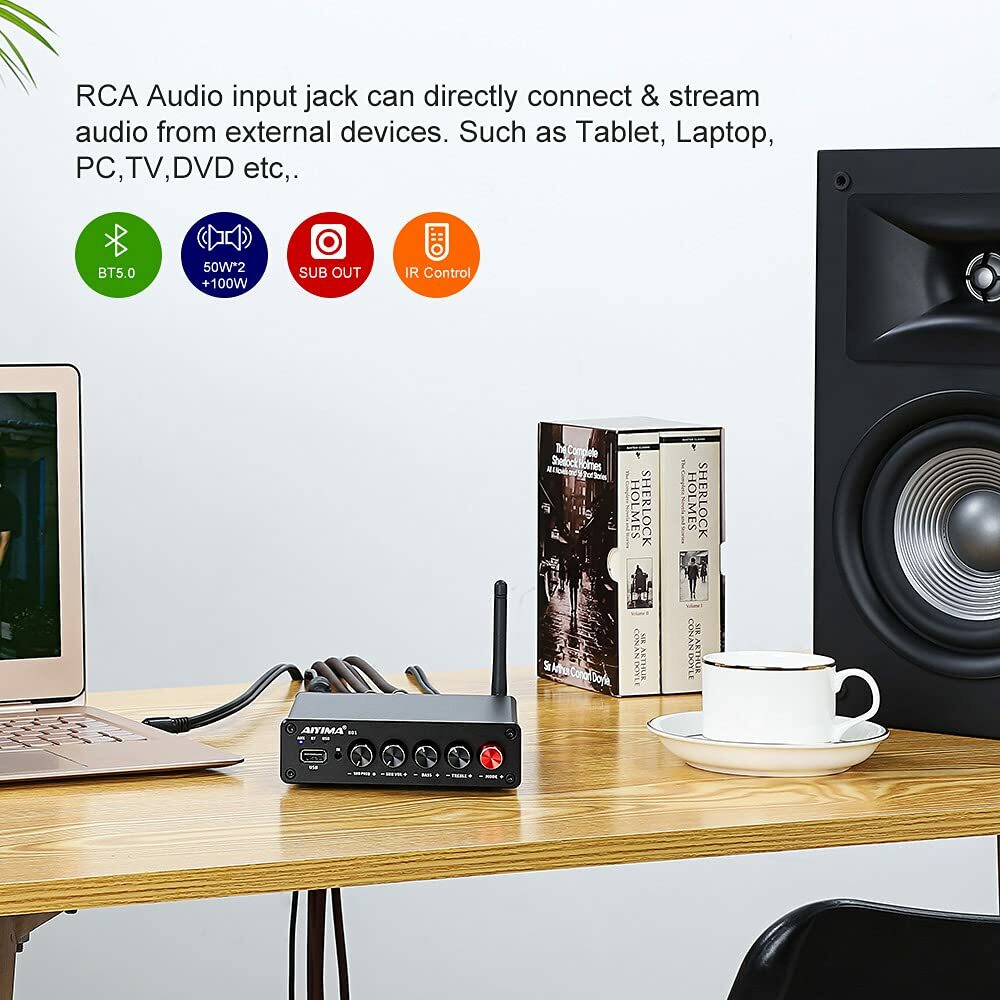

Stereo RCA can connect your computer, TVs, MP3 players, CD players, etc.

U-disk input supporting MP3 and lossless formats such as WAV, APE, FLAC and WMA

Exquisite appearance design, unique internal structure design

Reasonable circuit layout and concise wiring ensures HiFi clear and clean sound

Independent low frequency adjustment and bass volume control are designed

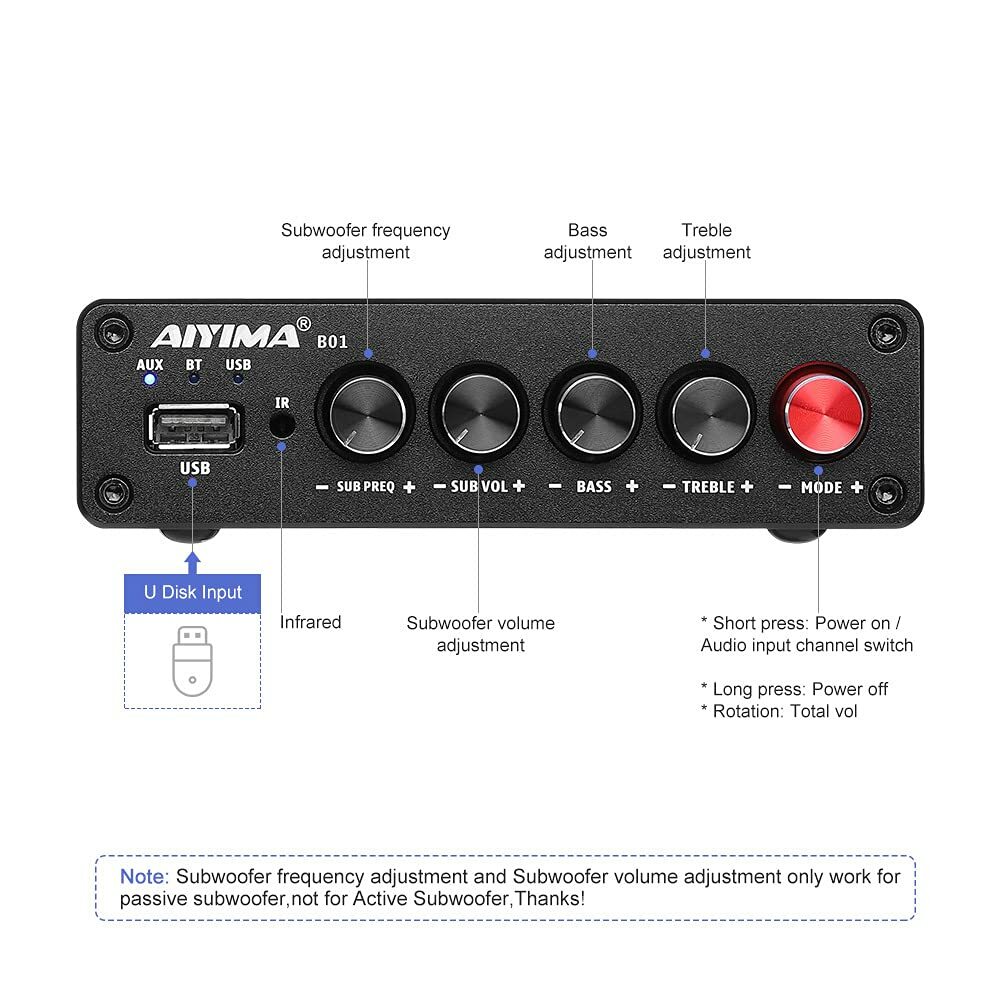

Multi-Function Main Knob

Short press : Power on / Audio input channel toggle switch

Long Press : Power off

Right Left Rotation : total volume adjustment


Aiyima B01 Bluetooth Amplifier with Subwoofer Output 14.jpg

Add Powered Subwoofer Output Function

Separate structure makes it multi-functional

It can independently connect to a pair of stereo speakers or subwoofer

And a low frequency output is specially added for the users who only have Powered subwoofer

It is suitable for most home 2.1 channel Passive Speakers and Passive Subwoofer / Active Subwoofer

Easy to build 2.0 channel / 2.1 channel / 2.2 channel audio system as you like


Tech specs

Number Of Channels
2.0 / 2.1 / 2.2
Audio Input
Bluetooth / Stereo RCA / U-Disk
Audio Output
Banana Speaker Jacks
U-Disk Support Format
MP3, WMA, APE, FLAC, WAV
Bluetooth Version
5.0
Speaker Impedance
4-8Ω
Max Output Power
50W x2 + 100W (4Ω load)
SNR
≥98dB
Input Sensitivity
0.775V
THD
0.05% (1kHz 1W)
Frequency Response
20Hz-20KHz (±3dB)
Low Frequency Adjustment Range
40-300Hz
Working Voltage
DC 19-24V
Dimensions ( W x D x H )
129mm x 128mm x 30mm
Net Weight
0.8kg
