AIYIMA D05 Bluetooth 5.0 Power Amplifier 120Wx2 Stereo HiFi 2.1 CH Digital Sound Amplifier 24Bit/192kHz Class D Amp USB DAC Coaxial Optical OLED AptX, Support Subwoofer & with Remote
- Uses the classic TAS5508 (DSP) + TAS5532A power amplifier chip, max output power is 120W+120W, load 4 ohm speaker, lets you enjoy Stereo Hi-Fi Music
- Bluetooth uses QCC chip, version 5.0, supports Apt-X and Apt-X LL lossless transmission, low frequency output is specially designed to connect active subwoofer, it is very easy to build a 2.1 channel system
- With treble and bass adjustment of ±12 dB and EQ effect, the sound is more delicate, reasonable current layout and simple wiring, using aluminum alloy shell and gold-plated terminals, to ensure HiFi clear and pure sound, exquisite appearance and with large OLED display screen and remote control design bring you different enjoyment
- Four audio input working modes : Bluetooth, PC-USB, Optical, Coaxial, RCA, with a world of input mode options, meets all your different needs, perfectly compatible with most home audio equipment, such as mobile phones, computers, tablets, TVs, MP3, CD players, etc.
Product details
Instructions For PC-USB Operation：
1. Connect the PC-USB interface of the rear surface of the machine with factory provided USB cable (USB can support hot plug)
2. Press the input signal selection switch to select USB input.
3. The icon with horn symbol in the lower right corner of PC
4. Click right button to pop up the dialog window and right click mouse
5. Select the playback device recognized by PC in the pop-up dialog window (USB of this machine is automatic identification, no manual installation and drive)
6. Click to confirm the identified digital output
Note : If no audio output when you connect TV, you need to adjust the TV audio source output to optical fiber, coaxial output. Pay attention to switch to the corresponding input mode.
120W+120W HiFi Home DAC Amplifier
2.1 Channel Bluetooth Amplifier
OLED Display

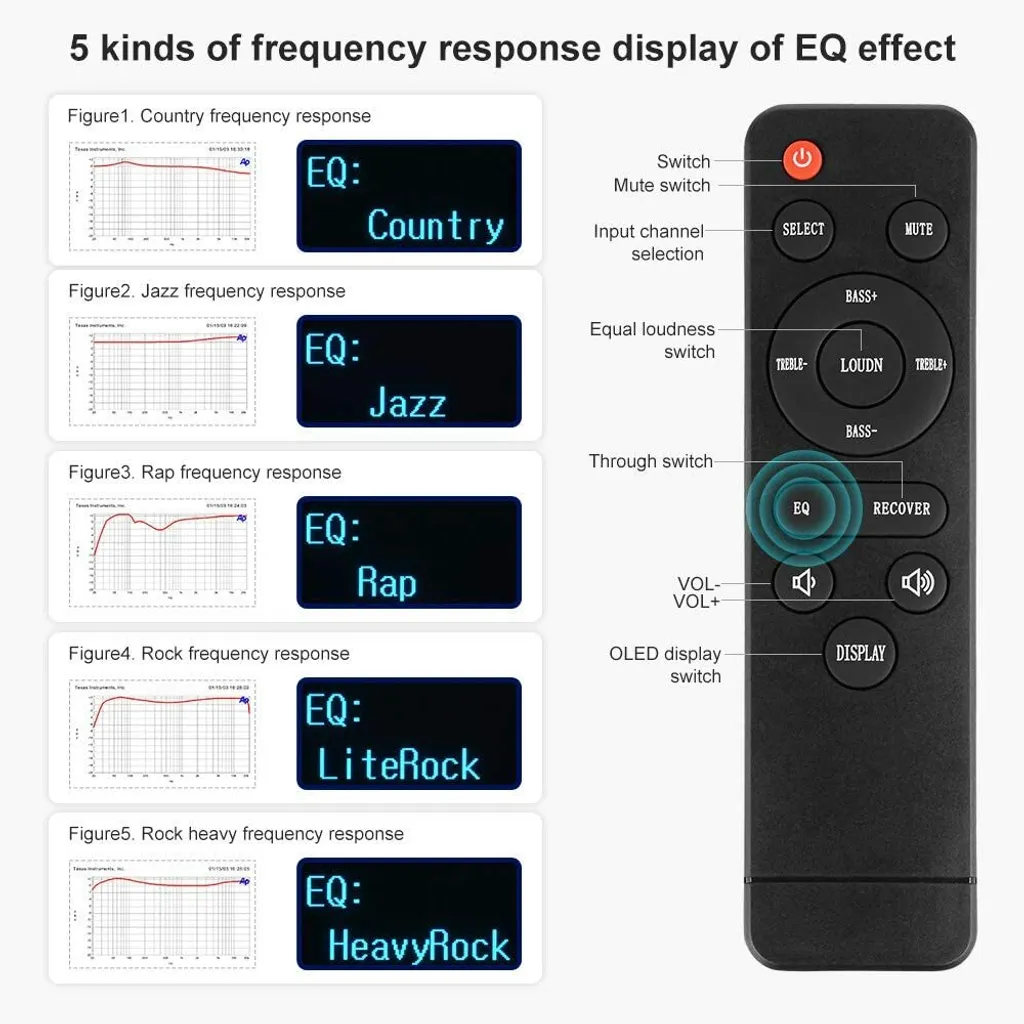

Remote Control, EQ mode selection
Multi-function knob, exquisite appearance design
High-Performance Chipset
Lets you enjoy HiFi sound!
Drive Passive Speakers + Powered Subwoofer
120 Watt per channel power output can drive most home passive speakers to create astonishing sound.
Using an active subwoofer allows you to enjoy a powerful and high quality sound.
Three Selection Of Sound System
- 2.0 Passive Speaker
- 2.0 Passive Speaker + Active Subwoofer Speaker
- 2.0 Passive Speaker + Subwoofer Amplifier + Passive Subwoofer Speaker
Package Includes :
1x Aiyima D05 Bluetooth DAC Power Amplifier
1x 32V 5A Power Adapter
1x Remote Control
1x Bluetooth Antenna
1x PC-USB Cable
1x Optical Cable
1x User Manual
