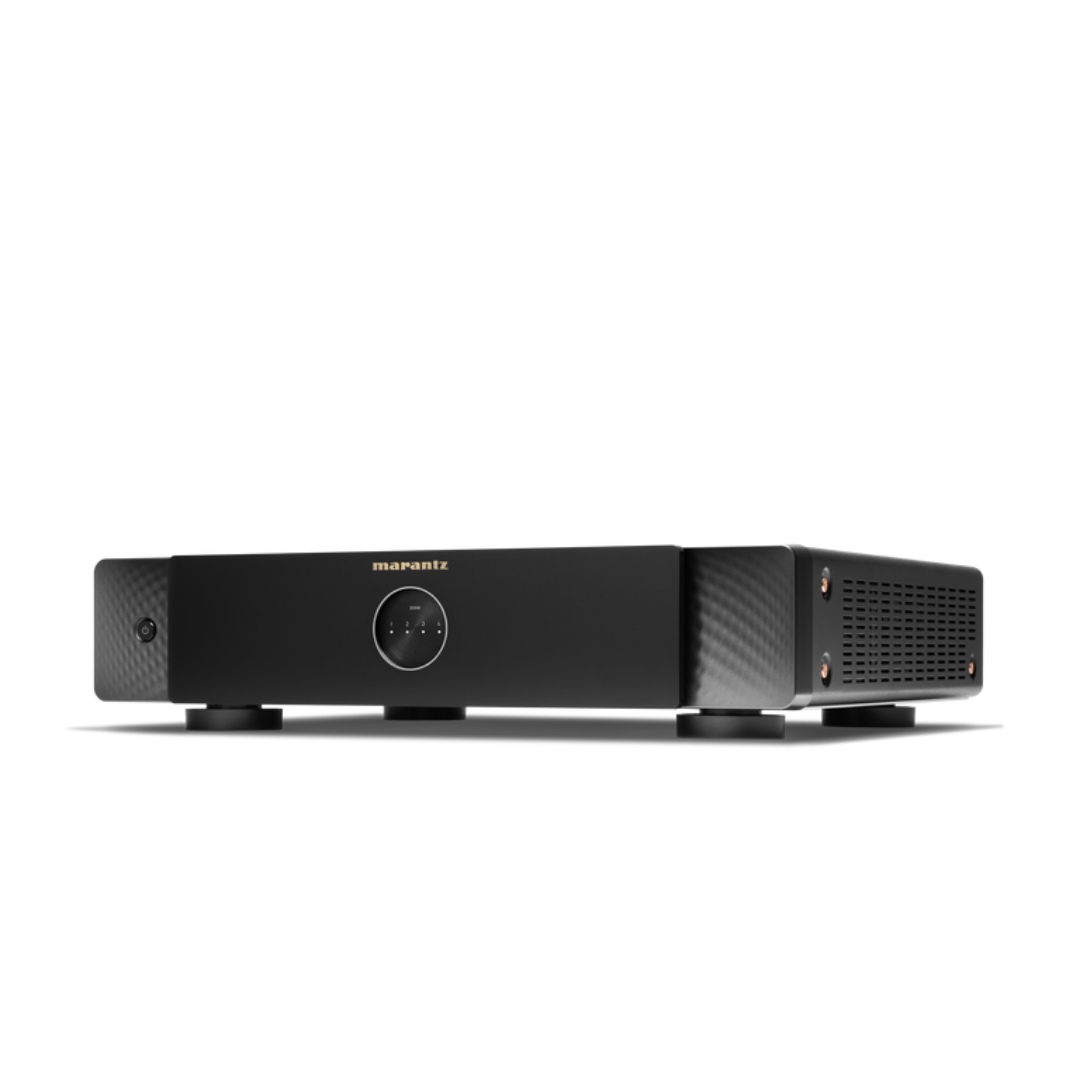

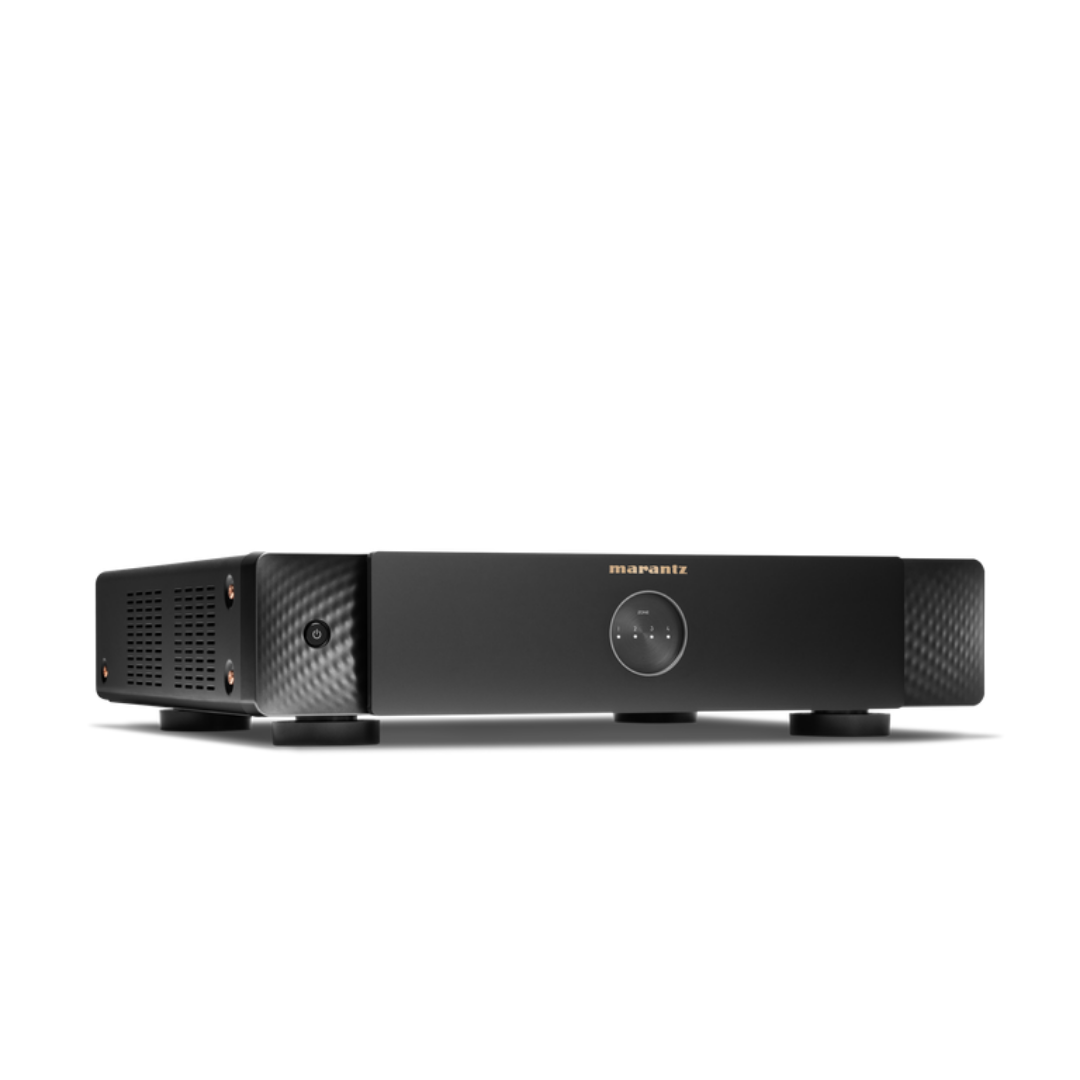

Marantz MODEL M4 8 Channel 100W Distribution Amplifier
- Regular price
- RM 16,399.00
- Sale price
- RM 16,399.00
- Regular price
-
RM 0.00
Share
Our Take
MODEL M4 is a four-zone, rack-mountable distribution amplifier engineered to offer superb Marantz sound from a wide range of streamed music services, locally connected music sources, and your TV.
- Crafted in Shirakawa, Japan
- 8 Channels
- 100 Watts per Channel
- Four Zones
- Dolby Digital
- HEOS Built-in
Distribution Done Differently
MODEL M4 offers an innovative and intelligent take on traditional distribution amplifier designs. A rack-mountable distribution amplifier for dedicated music lovers, it delivers superior sound from a wide range of streamed music services, locally connected music sources, and your TV (via the Optical inputs). MODEL M4’s industrial design complements the latest generation of Marantz hi-fi and AVR products. It has been carefully engineered to deliver the extreme robustness, simple control functionality, and flexible configuration that is essential to successful home integration.
Product Details
MODEL M4 delivers enough power to drive speakers across four rooms in your home. For even more power, use Bridge Mode which offers up to 4 x 200W of output.
Stream your favorite music or TV audio (via the Optical inputs), independently or grouped, in four different rooms with MODEL M4’s four built-in HEOS modules
With all the onboard features every integrator could need, MODEL M4 is extremely robust, easy to use, and flexible, making multi-room effortless..
Whether it’s using streamed services, your network, optical digital, or USB, with MODEL M4 you’ll experience your sound with the high resolution it deserves.
MMDF is a unique and sophisticated digital filtering technology that reveals the natural detail and tonality in sound.
Tech Specs
| Amplifier | |
|---|---|
| Rated Output & THD (8Ω) | 8 × 100 W (20 Hz – 20 kHz, THD 0.05%) |
| Rated Output & THD (4Ω) | 8 × 125 W (1 kHz, THD 0.1%) |
| Frequency Response | 20 Hz – 20 kHz (±1 dB) |
| Compatible Speaker Impedance | 4 – 16 Ω |

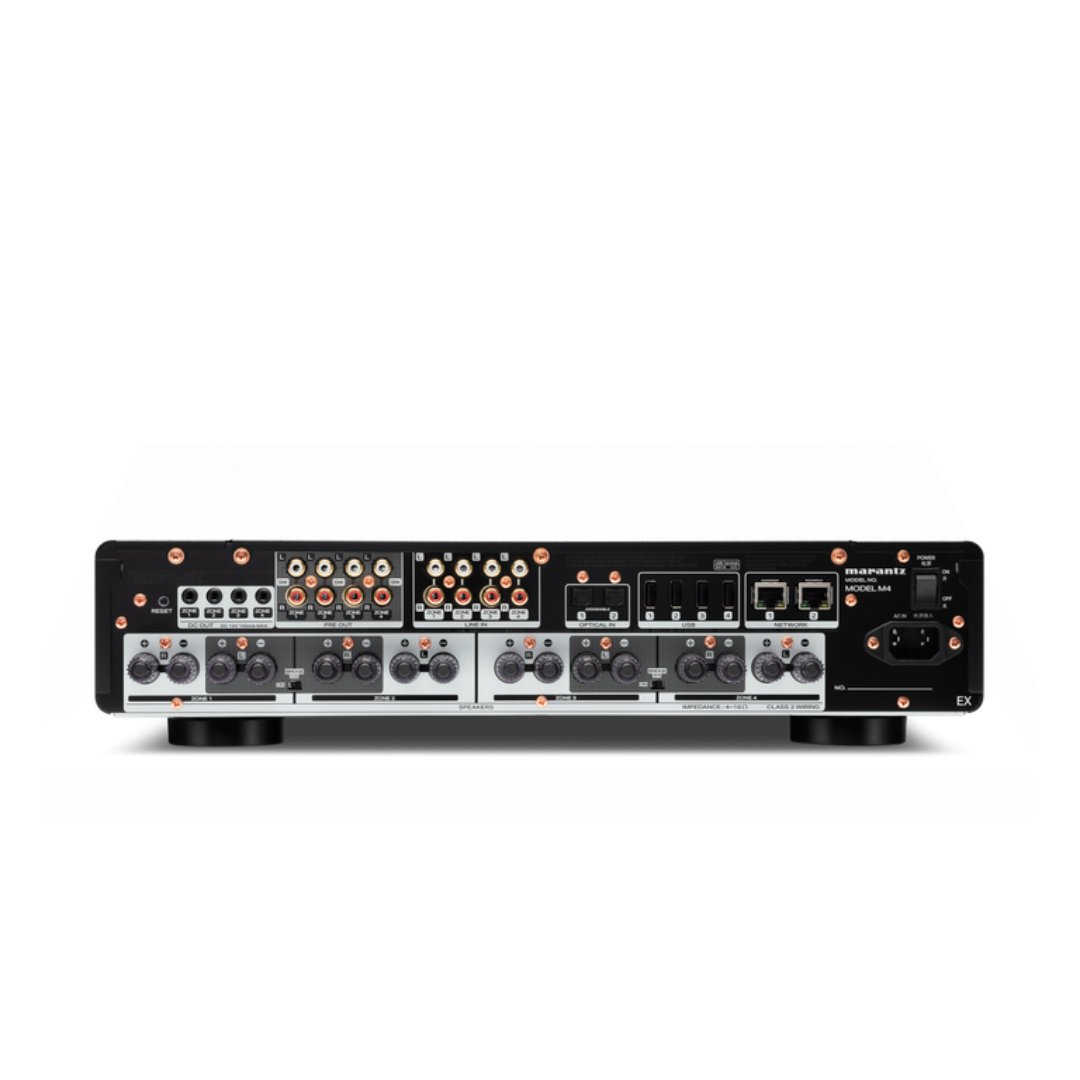

| Audio Inputs & Outputs | |
| Speaker Binding Posts | 4-way binding posts |
| Digital Inputs | 2 × TOSLINK |
| Analog Inputs | 4 × RCA L/R |
| Pre-Outs | 4 × RCA L/R |
| Subwoofer Out | 4 × RCA Mono (Selectable) |
| Audio Options | |
| Channel Assignments | Stereo (Default), Dual Mono |
| Volume Limit | 80–100% |
| Balance | −15 dB to +15 dB |
| High Pass / Low Pass Filters | HPF: 40–250 Hz / LPF: 40–120 Hz |
| EQ | Bass, Treble −5 dB to +5 dB |
| Sound Modes | Stereo, Direct, Virtual, Dialog Enhancer, Night Mode |
| TV Sound Grouping | Yes |
| Audio Format Support | |
| Decoding | Dolby Digital, LPCM, DSD |
| Stereo / Multi-channel PCM | Yes / Yes |
| Supported Music File Formats (USB / HEOS) |
WMA up to 192 kbps AAC & MP3 up to 320 kbps WAV, ALAC, FLAC up to 24-bit/192 kHz DSD 2.8 & 5.6 MHz |
| Streaming & Services | |
| AirPlay | AirPlay 2 |
| Spotify | Spotify Connect |
| HEOS Music Services* (Varies by region) | Pandora, Spotify, TuneIn, SiriusXM, Amazon Music, TIDAL, TIDAL Hi-Res, iHeartRadio, Deezer, Deezer HiFi, Mood:Mix, Sony Hi-Res, AWA, QPlay, SoundCloud |
| Music from Mobile Device | Yes (iOS, Android, Kindle Fire) |
| NAS Support | Network Share |
| USB Playback | Yes (4 × USB, FAT32 & NTFS) |
| Networking & Control | |
| Ethernet | 2 × Ports |
| Control System Support (TCP/IP) | Crestron, Control4, AMX |
| HEOS App | iOS, Android, Kindle Fire |
| 12V Trigger Out | 4 |
| General | |
| Product Color | Black |
| User Interface | Reset button, Front power button, Rear power switch |
| Dimensions (W × D × H, inches) | 16.34 × 4.17 × 17.4 |
| Dimensions (W × D × H, mm) | 415 × 106 × 442 |
| Weight (lbs) | — |
| Weight (kg) | — |
