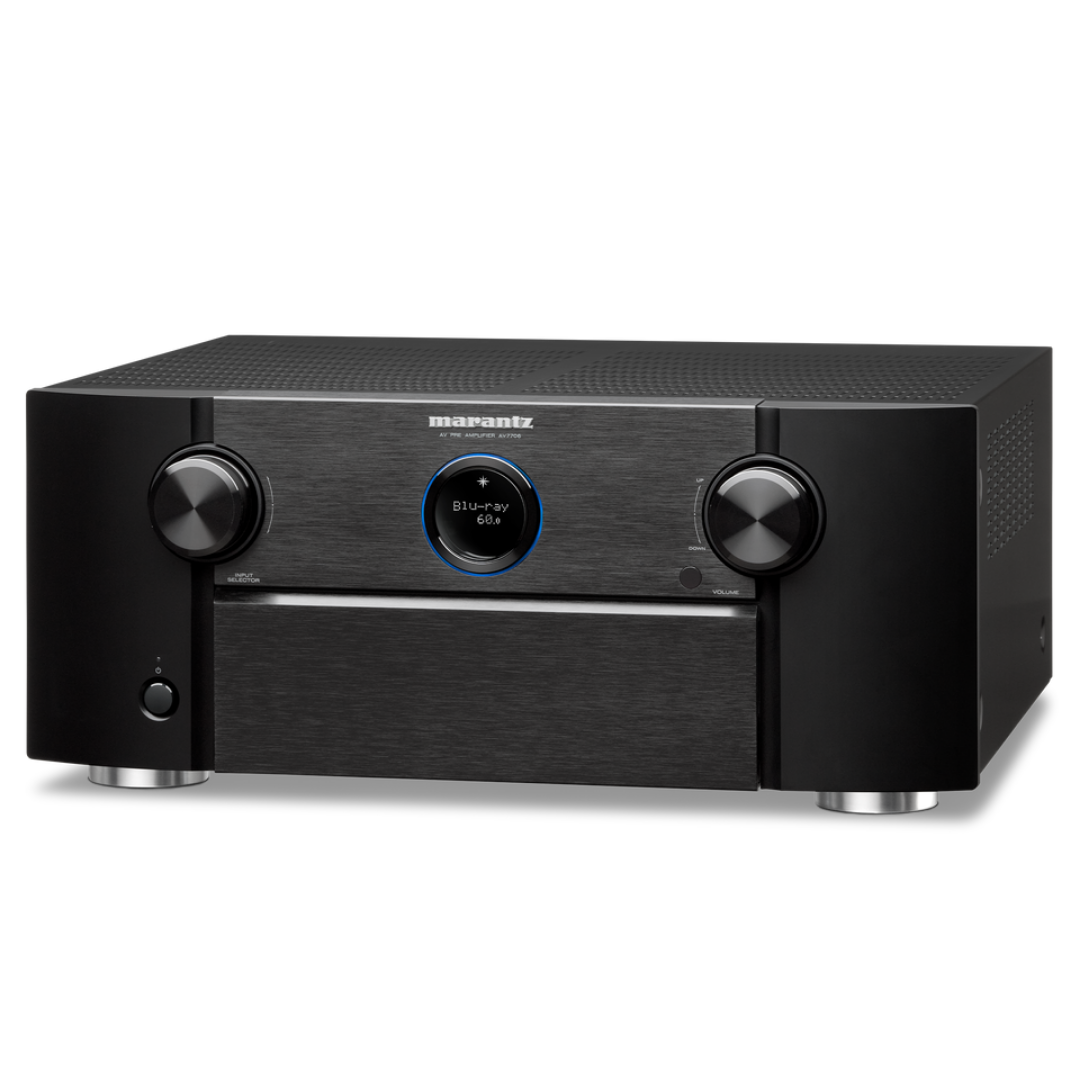

Marantz AV7706 Premium 11.2 Channel Pre-Amplifier and Processor
- Regular price
- RM 15,299.00
- Sale price
- RM 15,299.00
- Regular price
-
RM 0.00
Share
Our Take
Enjoy a versatile home theater setup with the audiophile sound you expect from Marantz and immerse yourself in multi-dimensional audio with the Marantz AV7706 processor/pre-amplifier.
- Artisinal Design
- 7 Channels
- 7 HDMI Inputs plus eARC
- 8K Ultra HD
- 3D Audio
- HEOS Built-in
A Masterpiece of Audio Architecture
Created with passion and extraordinary attention to detail, every element brings you closer to the music you love.
Product Details
The new AV7706 offers the highest-quality, crystal-clear viewing experience. Enjoy your movies with 8K/60Hz pass-through or upscaling, as well the latest in HDMI technology like Dynamic HDR and Quick Media Switching (QMS), which is used in movies to eliminate video delay.
Its high-resolution preamplifier uses custom-curated Marantz HDAM technology for the purest sound in audio.
The Marantz Sound Master meticulously tuned AV7006 for amazing performance with careful parts selection to create the Most Musical Sound in your home.
The new Marantz AV7706 includes 8 HDMI inputs and 3 outputs for all your favorite sources.
Tech Specs
| Multichannel Surround | |
|---|---|
| DTS Neo:X / DTS Neural:X | No / Yes |
| DTS Virtual:X | Yes |
| IMAX Enhanced | Yes |
| Dolby TrueHD / Dolby Atmos / Atmos Height Virtualization | Yes / Yes / Yes |
| Dolby Surround | Yes |
| Auro-3D | Yes |
| Audyssey DSX | No |
| Multichannel Stereo | Yes |
| Max Processing (Preamp) Channels | 11.2 |
| Sound Enhancements | |
| Copper-Plated Chassis | No |
| Power Transformer (Toroidal / EI) | No / Yes |
| Current Feedback Topology | Yes |
| HDAM (Hyper Dynamic Amplifier Modules) | Yes |
| Pure Direct | Yes |
| Gold-Plated RCA Terminals | Yes |
| Clock Jitter Reducer | Yes |
| Room Calibration | |
| Audyssey | MultEQ XT32 |
| Audyssey Dynamic EQ / Dynamic Volume / LFC | Yes / Yes / Yes |
| Compressed Audio Enhancer | MDAX2 |
| Network & Streaming | |
| HEOS Multi-Room & Streaming | Yes |
| Network Audio Sharing | Yes |
| Formats (Lossy) | MP3, WMA, AAC |
| Formats (Lossless) | FLAC, ALAC, WAV |
| Hi-Res (FLAC 192/24 / WAV 192/24 / ALAC 192/24) | Yes / Yes / Yes |
| DSD Audio Streaming | Yes (2.8 / 5.6 MHz) |
| Gapless Playback | FLAC, WAV, ALAC, DSD |
| AirPlay | AirPlay 2 |
| Internet Radio | TuneIn |
| Other Services* | Amazon Music HD, Amazon Music, TIDAL, Deezer, iHeartRadio, Napster, SoundCloud, Mood Mix |
| Apps (Phones) | Marantz 2016 AVR Remote |
| Apps (Tablets) | Android / iOS / Amazon Kindle |
| Ethernet / Wi-Fi / Bluetooth | Yes / Yes / Yes |
| HDMI & Video | |
| HDMI Inputs (Back / Front) | 7 / 1 |
| HDMI Outputs (Main / Zone) | 2 / 1 |
| Analog → HDMI Video Conversion | Yes |
| Analog → HDMI Scaling | 480i / 576i up to 8K 60/50 |
| HDMI → HDMI Scaling | Up to 8K 60/50 |
| GUI Overlay on HDMI | Yes |
| eARC / ARC | eARC (Enhanced ARC) |
| 3D Pass-Through | Yes |
| 4K Pass-Through / Scaling / GUI | Yes / Yes / Yes |
| Standby HDMI Pass-Through | Yes |
| Picture Adjust / Noise Reduction | Yes / Yes |
| CEC | Yes |
| DSD over HDMI | Yes |
| Auto LipSync | Yes |
| Multi-Room & CI | |
| HEOS Built-in | Yes |
| HEOS Link (IR / IP) | Yes / Yes |
| Zones | 3 |
| Zone Sources (HDMI / Opt, Coax / Network, USB / Analog) | Yes (2ch) / Yes (2ch) / Yes / Yes |
| Zone Outputs (Speaker / Pre-out) | No / Yes |
| Zone HDMI Output from HDMI Source | Yes |
| Control (IP / RS232 / Web / App) | Yes / Yes / Yes / Yes |
| IR Flasher In / Marantz Remote Bus | Yes / Yes |
| DC Trigger Outputs | 2 |
| HDMI Diagnostics | Yes |
| Setup & System | |
| Auto Speaker Setup | Audyssey MultEQ XT32 (mic) |
| Front Display | 2-line FL display + Port-hole |
| GUI | Advanced (ISF Certified) |
| GUI Languages | 3 |
| Smart Select | Yes |
| Firmware Update | Network / USB |
| Variable Crossover / Optimized Bass Redirection / Bass Sync | Yes / Yes / Yes |
| ECO Mode / Auto Power Off / Sleep Timer | No / Yes / Yes |

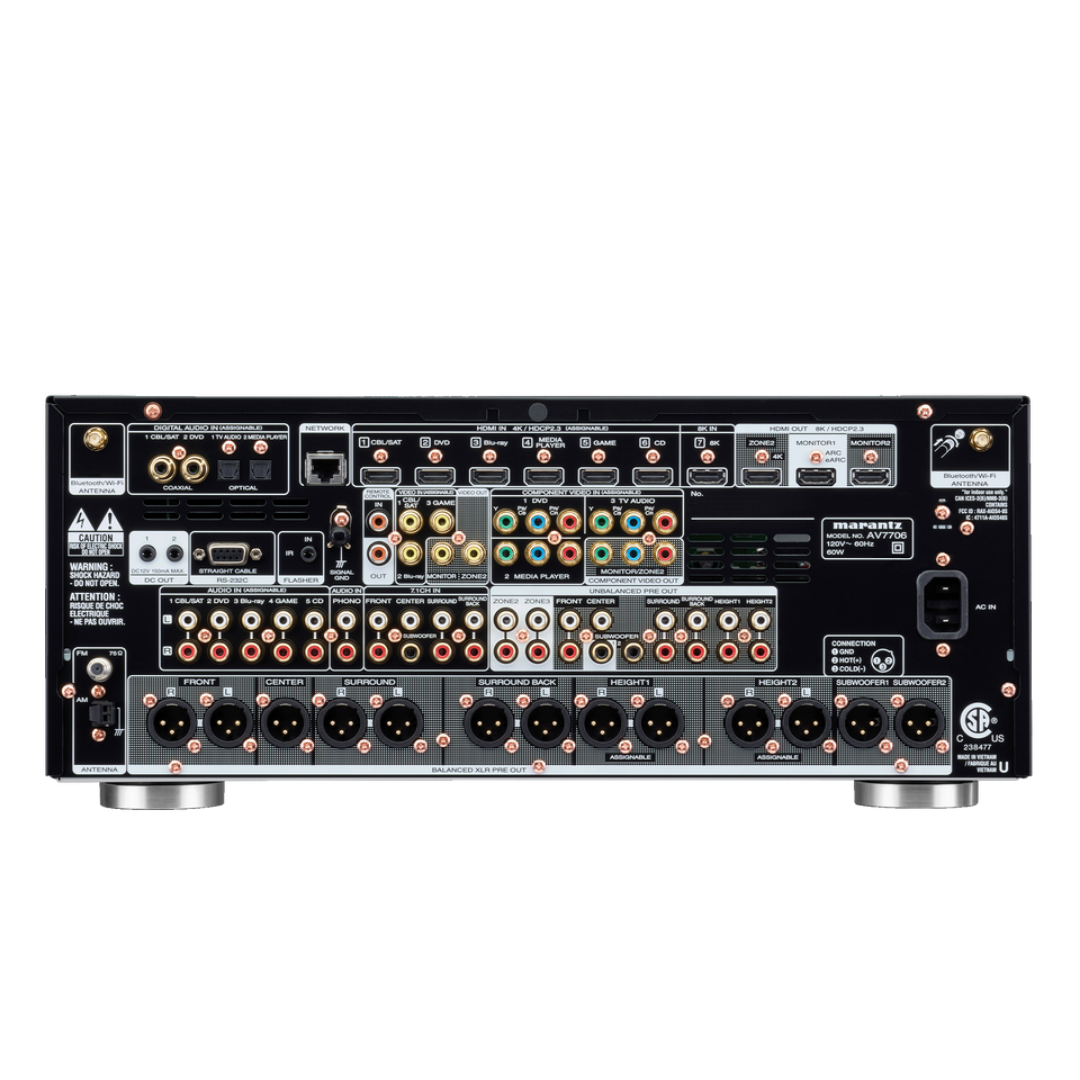

| Inputs & Outputs | |
| Composite In / Out | 3+1 / 2 |
| Component In / Out | 3 / 1 |
| HDMI In / Out | 7+1 / 3 |
| Multi-Room Video Out (Video / HDMI) | Yes / Yes |
| Analog In / Out | 5+1 / No |
| Phono (MM) In | Yes |
| Digital In (Optical / Coaxial) | 2 / 2 |
| Multi-Room Out (Analog / Digital) | 2 / No |
| Multichannel Pre-Out | Yes (11.2 RCA & 11.2 XLR) |
| Subwoofer Out | 2 (independent) |
| 7.1 Multichannel Input | Yes |
| Speaker A/B / Bi-Amp Drive / Multi-Room Speaker | Assignable pre-out / Assignable pre-out / Pre-out |
| Front Inputs (Audio / Composite / Optical / HDMI / USB) | Yes / Yes / No / Yes / Yes |
| USB Audio / Made for iPod / iPhone | Yes / No / No |
| AM/FM Tuner | Yes |
| General | |
| Metal Front Panel | Yes |
| System Remote Control | RC044SR |
| Remote (Pre-programmed / Learnable / LCD) | Yes / No / No |
| Power Consumption | 60 W |
| No-Sound Power (ECO on/off) | — |
| Standby / CEC Standby / Network Standby | 0.2 W / 0.5 W / 3.5 W |
| Network Control On | TBD |
| Dimensions w/o Antenna (W × D × H, in) | 17.3 × 15.8 × 7.3 |
| Dimensions Antenna Horizontal (W × D × H, in) | 17.3 × 16.2 × 7.3 |
| Dimensions Antenna Vertical (W × D × H, in) | 17.3 × 16.2 × 9.7 |
| Weight | 22.9 lbs (TBD) |
