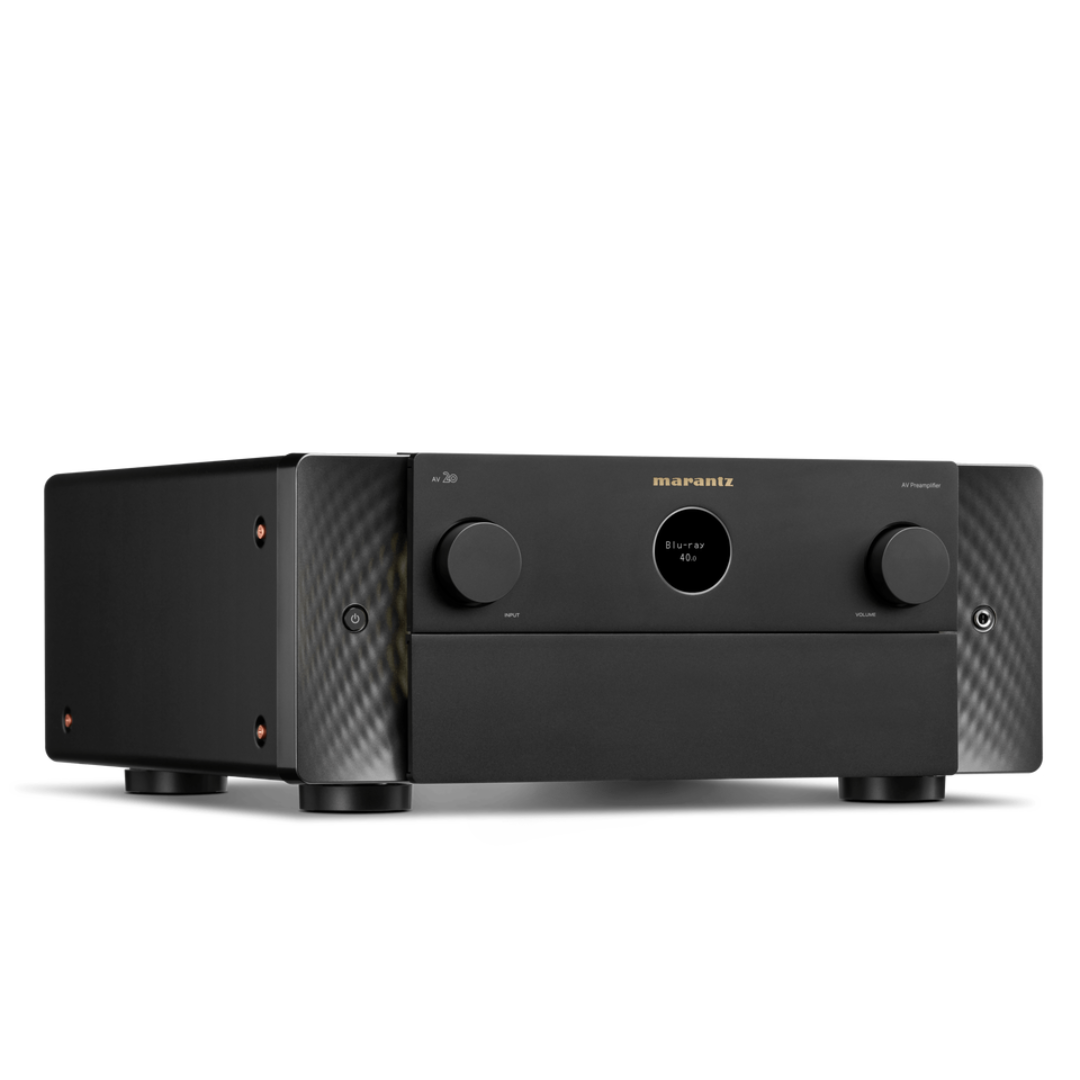

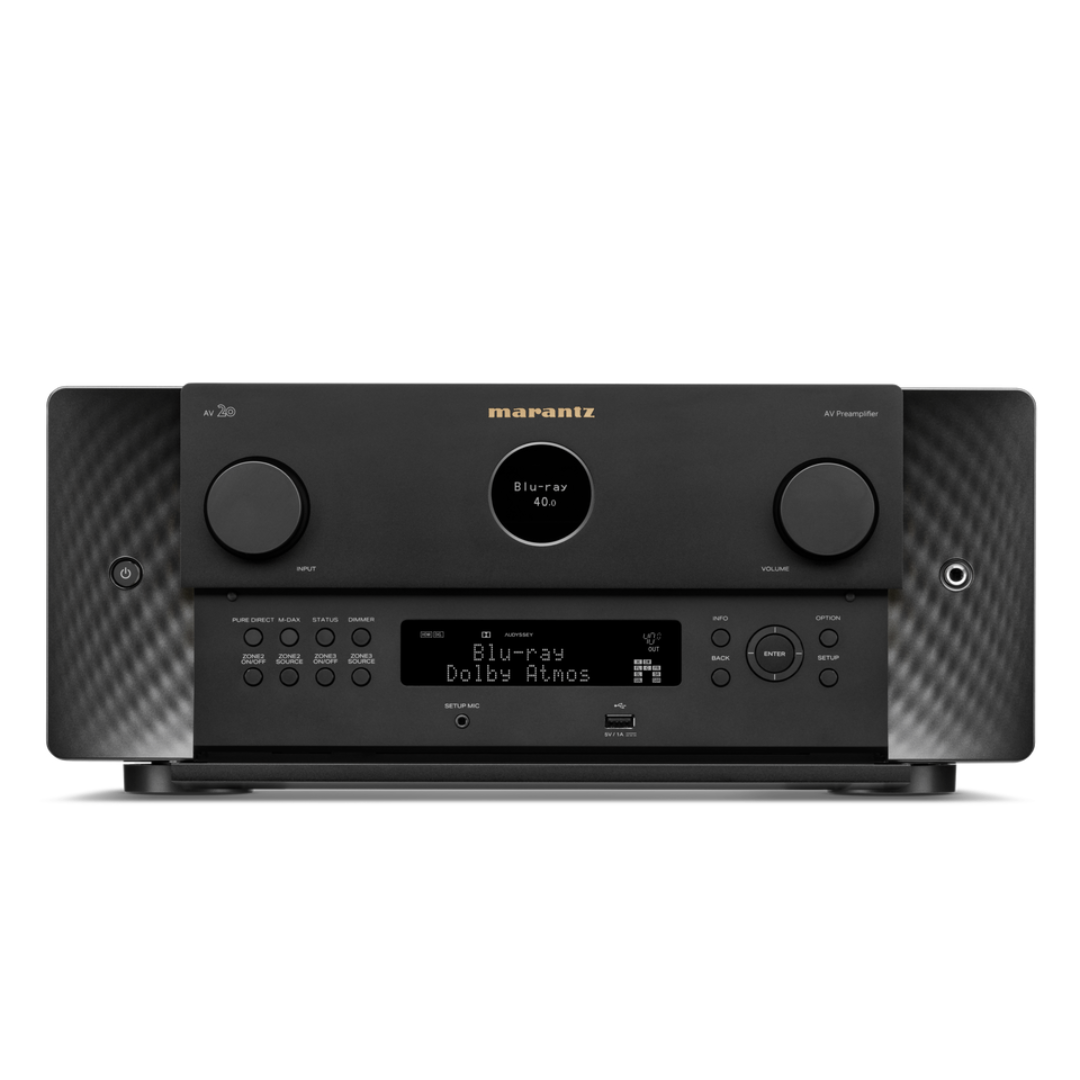

Marantz AV 20 Reference 13.4 Channel Balanced AV Preamplifier
- Regular price
- RM 28,699.00
- Sale price
- RM 28,699.00
- Regular price
-
RM 0.00
Share
Our Take
AV 20 represents the highest measure of performance and capability for reference-level home theater systems. This reference 13.4 Channel Balanced AV Preamplifier features Marantz HDAM discrete circuitry, and boasts seven HDMI inputs, each of which is 8K UHD compatible.
- Meticulously crafted with authentic materials
- 13.4 Channels
- 7 HDMI Inputs plus eARC
- 8K and Dolby Atmos
- 3D Audio
- HEOS Built-In
Elevated Listening Begins Here
When it comes to home theater, Marantz AV Separates bring your movies to life. AV 20 bears all the cinematic performance and feature-rich innovation we’re renowned for, expertly engineered with a timeless design.
Product Details
AV 20 is engineered to create the most memorable home theater experiences possible.
Our Marantz Sound Master meticulously tuned AV 20 for amazing performance with careful parts selection to create outstanding sound in your home.
Comprehensive connectivity options and extensive optimization ability ensures AV 20 will always deliver the perfect results to suit your home theater.
Make sure you get the best possible performance from your AV 20 by combining it with other Marantz products – such as the AMP 20.
Tech Specs
| Multichannel Surround | |
|---|---|
| DTS | DTS-HD, DTS:X, DTS:X Pro, DTS Virtual:X, DTS Neural:X (13ch) |
| Dolby | Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround |
| IMAX Enhanced | Yes |
| Auro 3D / 360 Reality Audio / MPEG-H | Yes / Yes / Yes |
| Multichannel Stereo | Yes |
| Max Processing (Pre-amp) Channels | 13.4 |
| Sound Enhancements | |
| Chassis / Power Transformer | Copper-plated / Toroidal |
| Current Feedback / HDAM | Yes / Yes (SA3, monolithic) |
| Pure Direct / Gold-plated RCA | Yes / Yes |
| Clock Jitter Reducer | Yes |
| Compressed Audio Enhancer (MDAX2) | Yes |
| Room Calibration | |
| Audyssey | MultEQ XT32 + Dynamic EQ / Dynamic Volume / LFC |
| Dirac Live | Upgradable |
| Network & Streaming | |
| Wi-Fi / Bluetooth / Ethernet | Yes / Yes / Yes |
| HEOS Multi-room & Streaming | Yes |
| Bluetooth Re-transmit (Headphones) | Yes |
| Apple HomePod | Yes |
| Formats (Lossy) | MP3, WMA, AAC |
| Formats (Lossless) | FLAC / FLAC HD 192/24, ALAC / ALAC 192/24, WAV / WAV 192/24 |
| DSD Streaming | Yes (2.8 / 5.6 MHz) |
| Gapless Playback | FLAC, ALAC, WAV, DSD |
| TuneIn / AirPlay 2 / Spotify | Yes / Yes / Yes |
| Roon | Roon-Ready |
| Other Services* | Amazon Music, TIDAL, Deezer, Napster, SoundCloud |
| Remote Apps | Marantz AVR Remote (phones); Android / iOS / Amazon Kindle (tablets) |
| HDMI & Video | |
| Total HDMI Inputs | 7 (rear) |
| HDCP 2.3 | Yes |
| HDMI Outputs (Main / Zone) | 2 / 1 |
| HDMI Scaling | 1080p / 4K → 8K |
| GUI Overlay on HDMI | Yes |
| HDMI 2.1 (8K/60 AB / 4K/120 AB) | Yes / Yes |
| 8K/60 & 4K/120 Pass-through (In / Out) | 7 / 2 (up to 40 Gbps) |
| HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR | Yes / Yes / Yes / Yes / Yes |
| eARC / ARC | Enhanced ARC (eARC) |
| Gaming | ALLM pass-through, VRR, QFT |
| HDMI Pass-through (Standby) | Yes |
| DSD over HDMI / Auto LipSync | Yes / Yes |

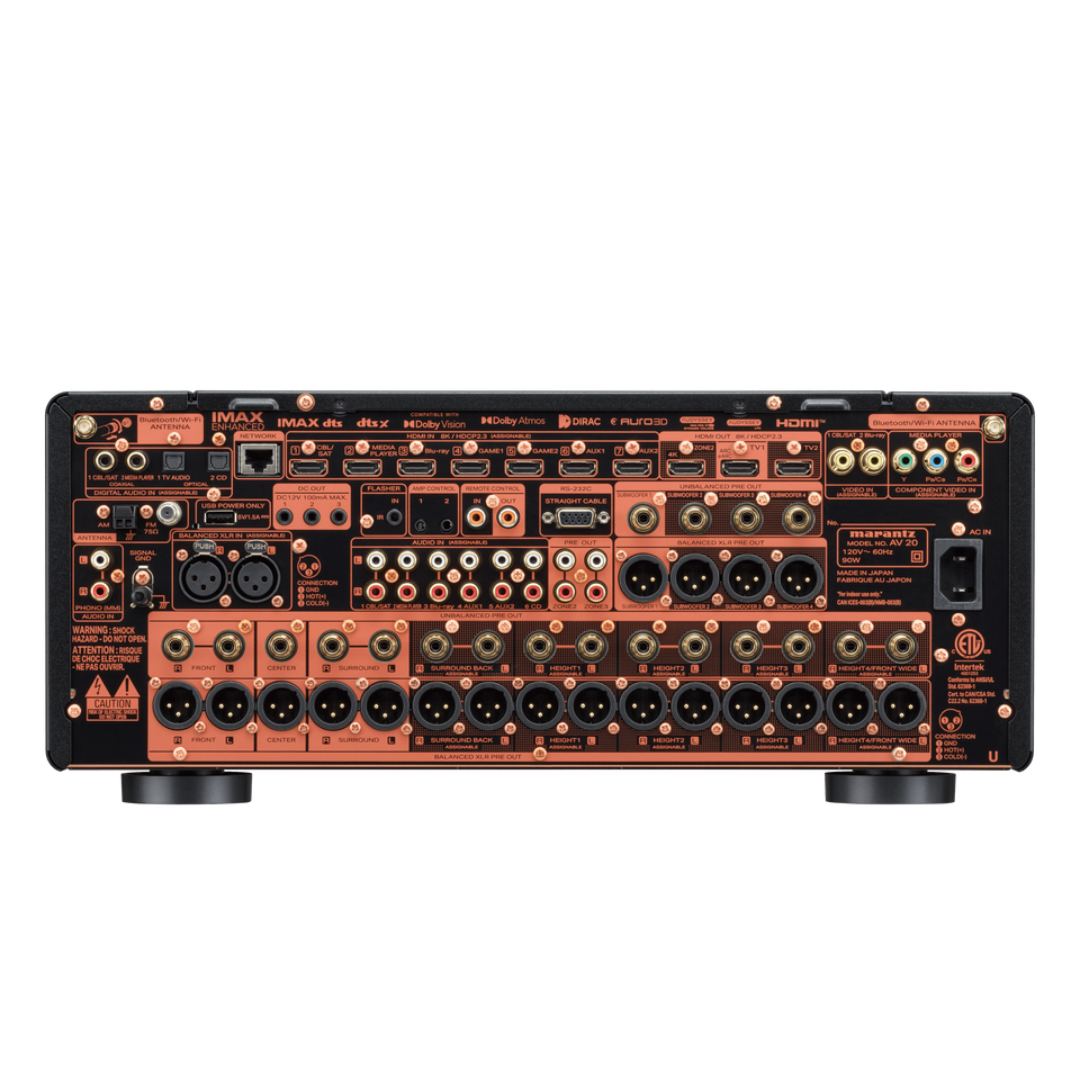

| Inputs & Outputs | |
| Composite In / Out | 2 / 0 |
| Component In / Out | 1 / 0 |
| HDMI In / Out | 7 / 3 |
| Multi-Room Video Out (Video / HDMI) | No / Yes |
| Analogue In | 6 (1 × XLR) |
| Phono (MM) In | Yes |
| Digital In (Optical / Coaxial) | 2 / 2 |
| Multi-Room Out (Analog / Digital) | 2 / 0 |
| Multichannel Pre-amp Out | Yes (15.4 RCA & 15.4 XLR) |
| Subwoofer Out | 4 independent (RCA & XLR) |
| Speaker A/B / Bi-amp Drive | Assignable pre-out / Assignable pre-out |
| Front USB / USB Audio | Yes / Yes |
| USB Power Supply (Rear) | Yes |
| AM/FM Tuner | Yes |
| Multi-Room & CI | |
| HEOS Built-in | Yes |
| HEOS Link (IR / IP) | Yes / Yes |
| Zones | 3 |
| Zone Sources (HDMI / Opt, Coax / Network, USB / Analogue) | Yes (2 ch) / Yes (2 ch) / Yes / Yes |
| Zone Outputs (Speaker / Pre-out) | No / Yes |
| Zone HDMI Output from HDMI Source | Yes |
| IP / RS232 / Web / App Control | Yes / Yes / Yes / Yes |
| IR Flasher In / Marantz Remote Bus | Yes / Yes |
| DC Trigger Outputs | 3 |
| HDMI Diagnostics | Yes |
| Setup & System | |
| Auto Speaker Setup | Audyssey MultEQ XT32 (mic included) |
| Dirac Live | Upgrade available |
| Front Display | 2-line FLD + Port-hole OLED |
| GUI | Modern HD GUI (3 languages) |
| Setup Assistant / Smart Select | Yes / Yes |
| Firmware Update | Network / USB |
| Variable Crossover / Optimized Bass Redirection / Bass Sync | Yes / Yes / Yes |
| Auto Power Off / Sleep Timer | Yes / Yes |
| General | |
| Metal Front Panel | Yes |
| System Remote Control | RC051SR (Backlit) |
| Power Consumption | 90 W |
| Standby / CEC Standby / Network Standby | 0.2 W / 0.5 W / < 2.0 W |
| Dimensions w/o Antenna (W × D × H, in) | 17.4 × 17.2 × 7.5 |
| Dimensions Antenna Horizontal (W × D × H, in) | 17.4 × 18.0 × 7.5 |
| Dimensions Antenna Vertical (W × D × H, in) | 17.4 × 18.0 × 10.0 |
| Weight | 33.1 lbs |
| UPC | 747192143848 |
| What's in the Box | Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, cardboard mic stand, 2 external detachable antennas, AC cord |
