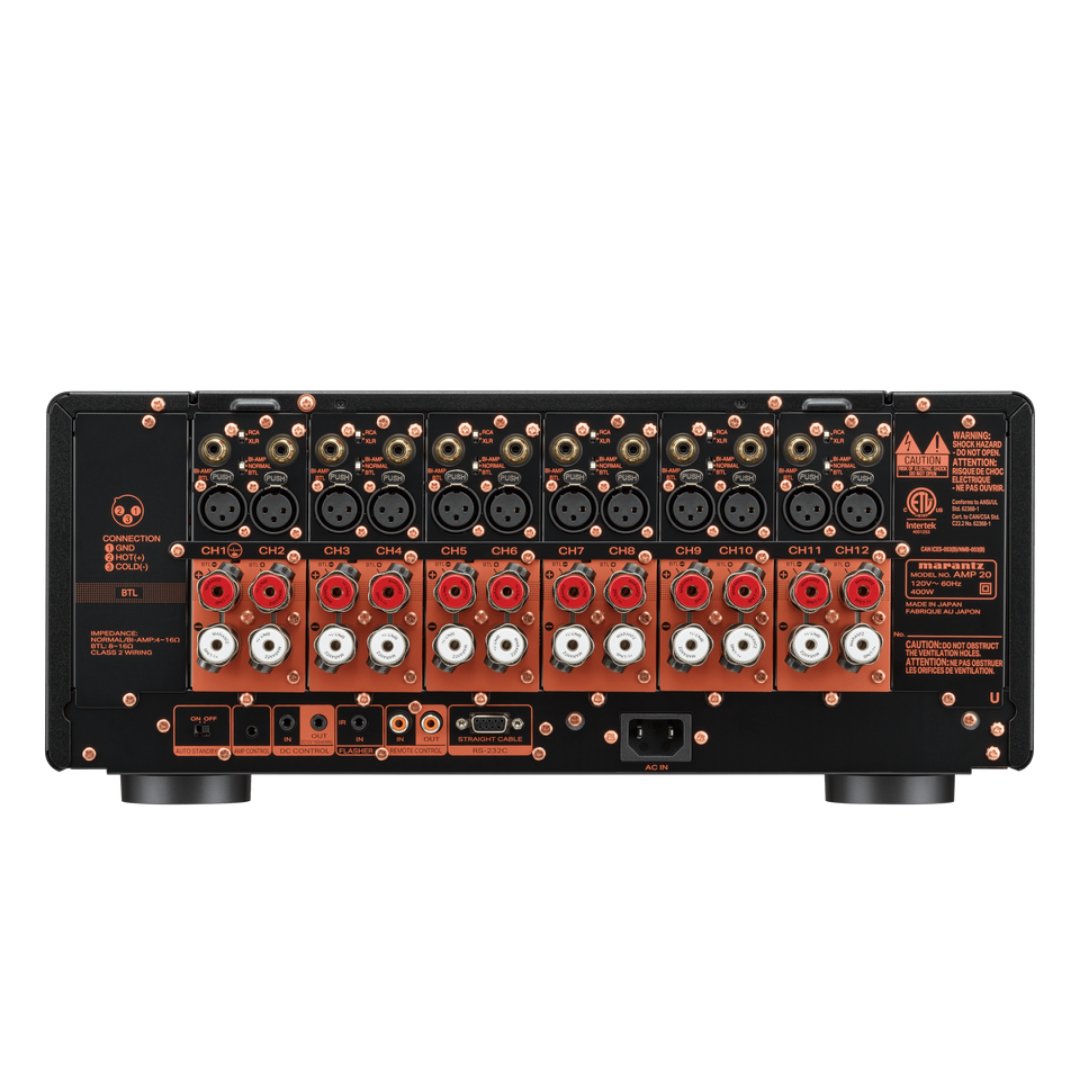

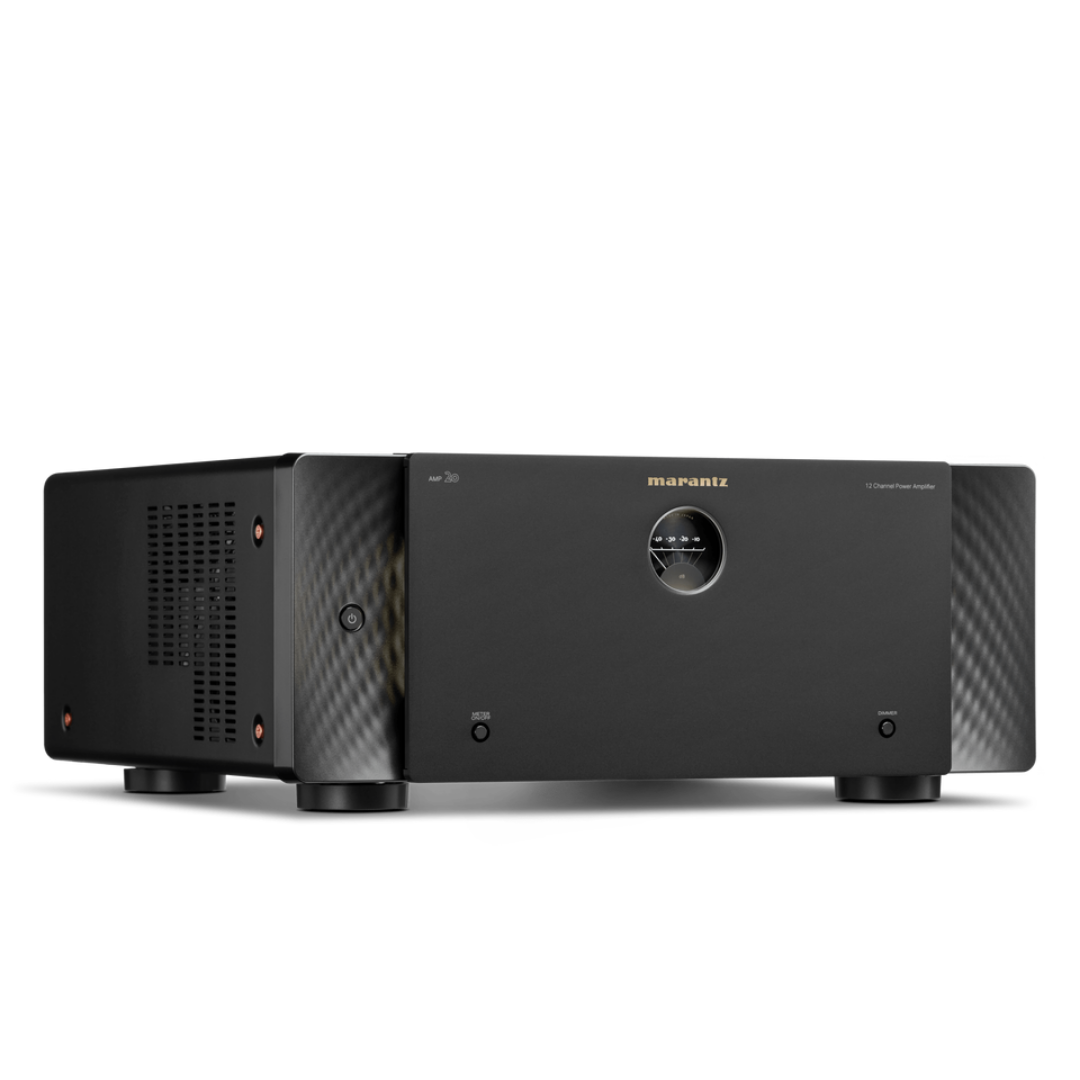

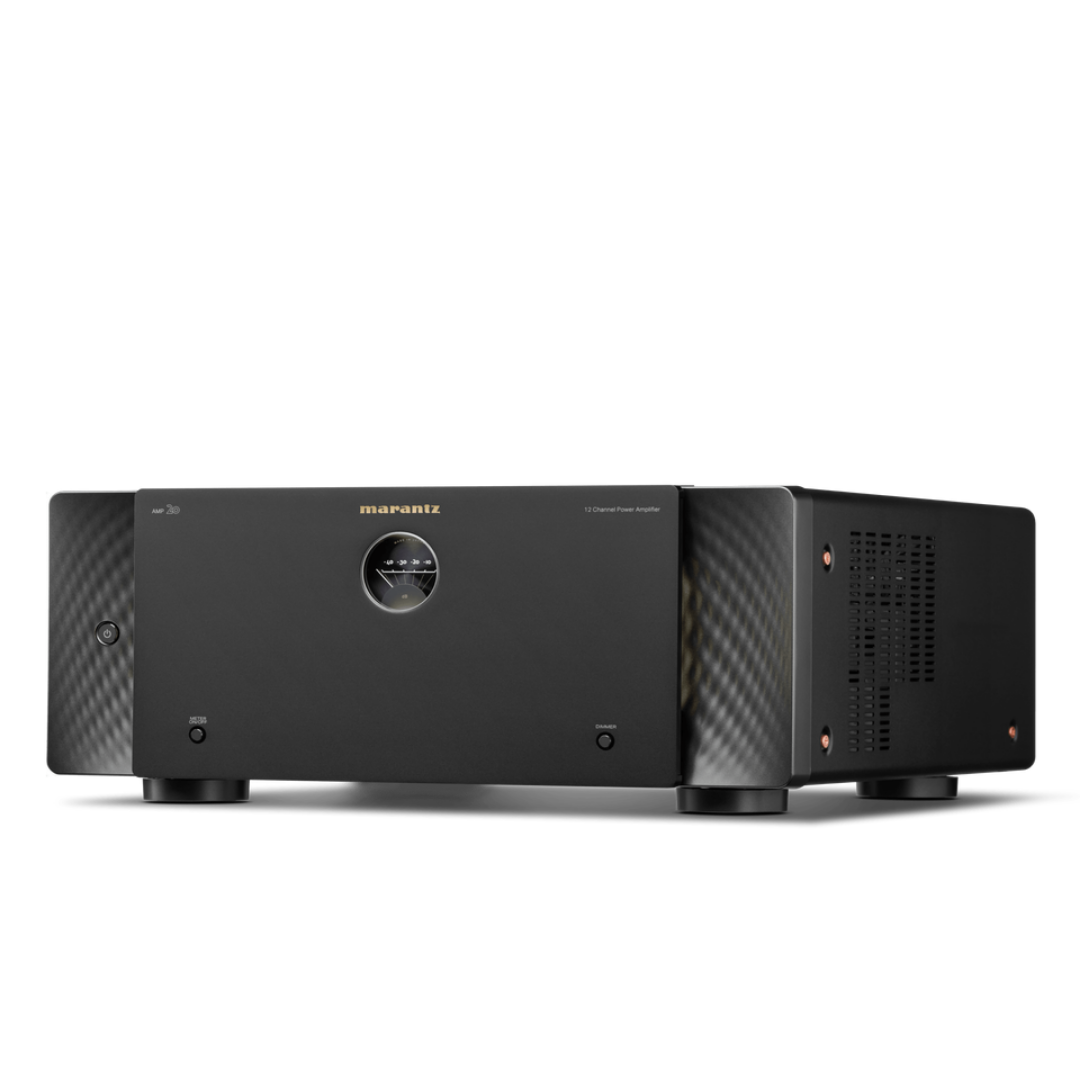

Marantz AMP 20 Reference 12 Channel Amplifier
- Regular price
- RM 28,699.00
- Sale price
- RM 28,699.00
- Regular price
-
RM 0.00
Share
Our Take
AMP 20 is a remarkably powerful 12-channel amplifier, and can be paired with AV 20 for an elite, reference-level home theater system.
- Crafted in Shirakawa, Japan
- 12 Channels
- 200 Watts per Channel
- Exclusive HDAM
- Custom Switching Amplifiers
- Selectable Output Modes
Ultimate Performance
AMP 20 combines very high-power output and high channel count to create a master reference-level amplifier for ultimate home theater performance. When paired with AV 20, the results are unforgettable.
Product Details
AMP 20’s custom-developed Class D amplification and refined HDAM-SA2 technology create the most incredible theatrical experience possible in your home.
Our Marantz Sound Master meticulously tuned AMP 20 for amazing performance with careful parts selection to create outstanding sound in your home.
AMP 20 gives you 12 channels of commanding power in a single enclosure, each rated at 200 watts to perform at extraordinarily high levels with no loss in fidelity.
Make sure you get the best possible performance from your AMP 20 by combining it with other Marantz products – such as the AV 20.
Tech Specs
| Inputs & Outputs | |
|---|---|
| Main Amplifier In | Balanced & Unbalanced: 12 ch (exclusive via selector switch) |
| Speaker Terminals | SPKT-1+ |
| Number of Speaker Terminals | 12 |
| Bi-Amp Drive / BTL Drive | Yes / Yes |
| Level Meter | Yes |
| Chassis | Copper plated |
| Multi-Room / CI | |
| RS232 Control | Yes |
| IR Flasher In | Yes |
| Marantz Remote Bus | Yes |
| DC Trigger (Input / Output) | 1 / 1 |
| Specifications | |
| Number of Power Amps | 12 |
| Power Output (8 Ω, 1 kHz, 0.05%, 2ch) — Normal / BTL | 200 W / 400 W |
| Power Output (4 Ω, 1 kHz, 0.7%, 2ch) — Normal | 400 W |
| Power Output (8 Ω, 1 kHz, 0.7%, 5ch) — Normal | 200 W |
| General | |
| Front Display | Level Meter |
| Auto Power Off | Yes |
| Metal Front Panel | Yes |
| Power Consumption | 400 W |
| Power Consumption (No-Sound) | 110 W |
| Standby Consumption | 0.2 W |
| Maximum Dimensions (W × D × H, in) | 17.4 × 17.4 × 7.5 |
| Weight | 39.7 lbs |
| What's in the Box | Main unit, quick start guide, AC cord, amp control cable, remote control cable, SP terminal wrench |
| UPC | 747192143930 |
