Our take
The Denon AVR-X4700H is an excellent mid-range AV receiver that includes everything you could possibly want from an amplifier at this price point. It's attractive and well-made, and while the design hasn't changed in years, it's served Denon well up to now. It also has a comprehensive set of connections, especially now that Denon has addressed the HDMI 2.1 bug, although there's still only one input. However, there's always eARC, and the HDMI ports support every format imaginable, so no matter what you connect the X4700 has you covered.
The installation is easy, and the set-up incredibly flexible, and while Audyssey isn't as sophisticated as some of the competition, it's still very effective. There's Denon's HEOS multi-room system, AirPlay 2, and the ability to work with Amazon Alexa and Google Assistant. The receiver is Roon Tested, and there's support for high-resolution audio and all the main music streaming services. In fact the X4700H is hard to criticise, with only the lack of a backlight on the remote and a built-in tuner worth mentioning (although there is Internet Radio).
There are nine channels built-in, and these deliver sufficient power to drive the kind of systems this amplifier is aimed at, even with all nine channels driven simultaneously. The X4700 can process up to 11.2 channels, and it supports Dolby Atmos, DTS:X, Auro-3D and IMAX Enhanced. The overall performance is excellent, with clean and clear delivery, and precise steering of effects. Most will be happy running a 9.2-channel system, but if you want 11.2 you won't be disappointed. The Denon excels with multi-channel and immersive audio, but is equally capable with two-channel music.
Product details
POWERFUL 9-CHANNEL AMPLIFIER
With discrete high current amplifiers on all channels, the AVC-X4700H provides a powerful power of 200 watts per channel to experience the entertainment in a dynamic and precise manner. The amplifiers can handle low impedance speakers and create a balanced, tonal sound. Increase your expectations for home theater entertainment.
FULL 3D AUDIO SUPPORT
Immerse yourself in 3D audio with Dolby Atmos, Dolby Atmos Height Virtualization Technology, DTS: X, DTS Virtual: X, IMAX Enhanced and Auro-3D. The AVC-X4700H supports up to 11.2 channel processing with 9 channel amplification. Add a 2-channel amplifier for two additional channels and create a 7.2.4 Atmos home theater for an even more immersive 3D audio experience.
CHOOSE IMMERSIVE SURROUND SOUND
Set up a 5.1.4 or 7.1.2 Dolby Atmos surround system using the nine amplification channels built into the AVC-X4700H. Enjoy the ultimate Dolby home theater experience with Dolby Atmos height speakers or separate height speakers.
The AVC-X4700H also delivers an immersive 3D sound without height channels using Dolby Atmos Height Virtualization Technology. This allows you to observe virtual height effects that are normally observed in a 7.2, 5.2 or 2.2 speaker setup.
EVEN CLOSER TO THE ACTION
DTS: X and DTS Neural: X bring your movies, games and music to life even more than traditional 5.1 channel surround sound.
The AVC-X4700H also delivers an immersive 3D sound without height channels through DTS Virtual: X Height Virtualization Technology support. This creates virtual height effects that are normally perceived in a 7.2, 5.2 or 2.2 speaker setup.
MAX ENHANCED TECHNOLOGY
Enjoy the best home entertainment experience with IMAX Enhanced: the latest DTS technology and the new standard for home entertainment in picture, sound, scale and clarity. Enjoy brighter and sharper images. Feel the immersive, thunderous 3D sound and experience high-quality content digitally remastered by IMAX.
STEP INTO A WORLD OF LIVELY SOUND.
Auro-3D takes your home cinema experience to a breathtaking new level with exciting three-dimensional sound for music, games, TV and movies, while enhancing your existing audiovisual collection thanks to the groundbreaking Auro-Matic up-mixing algorithm.
READY FOR 8K ULTRA HD
With the new AVC-X4700H you can enjoy all the entertainment with the latest available technologies and watch movies with unparalleled sharpness. Enjoy movies in 8K with 8K / 60Hz throughput and upscaling, as well as the latest technologies in AV amplifiers, such as Dynamic HDR and Quick Media Switching (QMS), which are applied in movies to avoid lag.
8K HDMI VIDEO SECTION WITH EARC
Enjoy your favorite movies, TV shows and games with the very best picture quality. The AVC-X4700H is equipped with an advanced HDMI section (8 inputs / 3 outputs) with a separate 8K input that supports 8K / 60Hz and 4K / 120Hz video throughput. All HDMI inputs offer 4: 4: 4 Pure Color sub-sampling, HDR10, HDR10 +, Dolby Vision, Hybrid Log-Gamma (HLG), Dynamic HDR and BT.2020 passthrough support for extraordinary sharpness, color and contrast. Enjoy full-rate 8K upscaling as well as HDCP 2.3 processing to play unlimited copy-protected content. The AVC-X4700H also integrates eARC (enhanced Audio Return Channel) to support 3D audio formats directly from the smart TV apps to the AV amplifier.
ADVANCED VIDEO OPERATIONS
All HDMI ports use HDCP 2.3 processing. This allows you to enjoy unlimited content that is protected against copying. The AVC-X4700H is certified by the Imaging Science Foundation and offers a comprehensive set of video calibration settings (intended for ISF technicians) and ISF Day / ISD Night video mode. Enjoy seamless compatibility with the latest HD and Ultra HD TVs, Blu-ray players and game consoles.
STUNNING COLOR - UNIVERSAL COMPATIBILITY, HDR10 + AND DYNAMIC HDR
The AVC-X4700H supports High Dynamic Range (HDR) video format, HDR10, Dolby Vision and HLG (Hybrid Log Gamma). Dolby Vision transforms the viewing experience with stunning clarity, contrast and color. HLG offers HDR technology in television broadcasts for a clear, pure picture. The AVC-X4700H also offers HDR10 +, which sends dynamic metadata to the TV for a more lifelike picture, as well as Dynamic HDR.
(Some technologies are not available for all televisions.)
THE NEXT GENERATION IN GAMING
The new AVC-X4700H takes gaming to the next level with the latest HDMI support. Enjoy gaming even more with 4K / 120Hz throughput and upscaling, as well as Variable Refresh Rate (VRR), Quick Frame Transport (QFT), and Auto Low Latency Mode (ALLM), which reduce or prevent lag and frame tearing for smoother, lag -free gaming experience.
WORKS WITH THE LATEST VOICE ASSISTANTS
Enjoy effortless voice control and complete flexibility from the major voice control systems. You can give voice commands through a smart speaker on your phone, using Amazon Alexa *, Google Assistant or Apple Siri. Ask to play your favorite music, turn up the volume, skip to the next song, switch inputs, and more. Switch between voice services or pick a favorite, the choice is yours. The functionalities differ per voice control system.
WORKS WITH AMAZON ALEXA *
Control the AVC-X4700H hands-free with your voice via Amazon Alexa. Adjust th
e volume, skip to the next track, switch inputs for all your different media players and more - "Just Ask." Download the HEOS Home Entertainment Skill to allow voice commands from Amazon Alexa for your AVC-X4700H and devices with HEOS Built-in. Requires Alexa app and Amazon Echo, Dot or equivalent.
* Amazon Alexa is not yet supported in the Netherlands and Belgium.
WORKS WITH GOOGLE ASSISTANT
Turn on music in the HEOS app and then ask your Google Assistant to adjust the volume, play, pause and skip music tracks and a lot more.
AIRPLAY 2 + APPLE SIRI VOICE CONTROL
Use AirPlay 2 to stream music wirelessly to the AV amplifier or connect to other compatible speakers to play your music all around the house.
Stream audio from your favorite music services such as Apple Music and Spotify or watch videos from services such as YouTube and Netflix on any iPhone, iPad, Mac or Apple TV, while the audio is played in perfect sync from the AirPlay 2 sources of your speakers.
AirPlay 2 also supports multiroom audio: wirelessly stream music to various devices with AirPlay 2 support with improved audio buffering for smooth audio playback. AirPlay 2 lets you group and control compatible audio devices through the Apple Music app or Apple Home app. Use AirPlay 2 in the app or via Siri with your voice.
SUPPORT FOR HI-RES AUDIO
Enjoy your favorite music tracks in high resolution with fantastic audio fidelity. The AVC-X4700H with AKM 32-bit D / A converters provides high-resolution audio decoding for various lossless file types, including ALAC, FLAC and WAV up to 192kHz / 24 bit playback. The device is also compatible with 2.8 / 5.6 MHz DSD files (DSD is the audio coding format of SACD). You can play them from storage devices via the USB input on the front panel or via network sources. The AVC-X4700H also supports other file types such as MP3 and WMA.
AL32 PROCESSING
Listen with Denon's advanced audio processing features, such as AL32 Processing. Denon's proprietary AL32 Processing technology provides ultra-high resolution multi-channel digital audio filtering for all audio channels for a natural sound spectrum with an enhanced soundstage.
PHONO INPUT FOR A RECORD PLAYER
Connect your record player to the phono input of the AVC-X4700H and play vinyl records. Enjoy your vintage collection with exceptional sound quality.
DUAL SUBWOOFER OUTPUT
Immerse yourself in evenly distributed, accurate bass sound. The AVC-X4700H offers two subwoofer outputs to balance low frequencies and provide better dispersion. Connected subwoofers can be individually calibrated with Audyssey Sub EQ HT for a seamless bass sound tailored to your room. No acoustic peaks or dips, just punchy, room-filling bass.
"ROON TESTED" CERTIFIED
All new Denon AV amplifiers are now Roon Tested. Get more out of your digital music library with all the information you can find about your favorite artists and songs. Find lyrics, concert dates, photos, bios, reviews and more. Subscription required.
ADVANCED SOUND PROCESSING
Experience extraordinary sound quality from both music and movies.
DSP POWER PROCESSING
Building on the Denon flagship AVC-X8500H, the AVC-X4700H uses an advanced digital audio processing system that features two dual SHARC + core DSP chips supporting up to 11 channels of audio processing and decoding.
PREAMPLIFIER MODE AT AMPLIFIER ASSIGN
Thanks to the latest preamp mode, your Denon AV amplifier also works as a perfect AV pre-processor with the latest HDMI connectivity. Preamp mode provides a cleaner signal path and more tolerance in the distortion level by disconnecting internal amplifiers. Your separate AV system will be up to date without looting your bank account.
MULTISOURCE, MULTIROOM
With the AVC-X4700H, you can enjoy 9.2 channel surround sound in a room while up to two other rooms play a different source or music track for a total of 3 sources and 3 rooms. Watch a movie in one room while a family member listens to music undisturbed in another room. Make use of the internal amps or the pre-outs.
TV SOUND IN ALL ROOMS
Play the sound of your TV in all rooms. Enjoy full-fledged discrete sound like Dolby Atmos in one room with a full immersive experience while playing the same audio source in the second or third room. Select "Source" for the second room to play the sound from the first room. The AVC-X4700H supports both HDMI and digital sources for the second or third room.
BLUETOOTH SOUND TRANSMISSION
Enjoy your favorite audio without waking up the whole house by sending the audio from the AV amplifier to your Bluetooth headphones. The AVC-X4700H even allows you to play sound from both Bluetooth headphones and connected speakers simultaneously. If you have a hard of hearing family member or friend, we recommend this setup.
EASY INSTALLATION
The included AVC-X4700H Quick Installation Guide provides simple, clear instructions to get you started. As soon as you connect the TV to the AVC-X4700H via HDMI, the exclusive Denon Setup Assistant appears on your TV screen to walk you through the installation step by step. The colored speaker terminals are also located next to each other on the rear of the AV amplifier. This makes organizing and connecting speaker cables a piece of cake. The AVC-X4700H automatically renames HDMI inputs when connected, or you can manually rename them for your own convenience.
QUICK SELECTS FOR USER FRIENDLY AUDIO TUNING
The Denon AVC-X4700H's front panel features four Quick Select buttons that allow you to save your preferred settings for each audio source. Switch between TV audio, Blu-ray, media players and more and the AVC-X4700H adjusts the EQ settings to your preferences for that media source. Use the buttons on the front panel or choose the same Quick Selects on the AVR remote for faster operation.
SMART TV CONNECTIVITY
Control your Denon AVC-X4700H with your Smart TV remote control via the HDMI CEC functionality on your Smart TV. The Smart Menu home screen provides quick access to sources and surround settings, the setup menu and four Quick Selects.
BUILT-IN BLUETOOTH, WIFI AND AIRPLAY 2 COMPATIBILITY.
The heart of your wireless network. The Denon AVC-X4700H is equipped with an advanced dual antenna system so that the user can stream stably through Bluetooth and Wi-Fi and Airplay 2 functions for wireless streaming, even in busy urban areas. Listen to your favorite audio content wirelessly from your smart devices.
With the built-in HEOS technology, you can play the same music track in every room or choose to play a different song in each room. HEOS offers effortless voice control via Amazon Alexa and Google Assistant.
DENON AVR REMOTE APP FOR SEAMLESS CONTROLS
More control in your back pocket. Using the AVC-X4700H is even easier with the free Denon Remote App for iOS and Android. Adjust the volume, turn on or off, mute the music, select a source or switch to HEOS. Download the free Denon AVR Remote app on your smartphone or tablet today.
AUDYSSEY MULTEQ XT32 EASY INSTALLATION AND ROOM CALIBRATION.
Optimize your audio experience with Audyssey MultEQ XT32 for a seamless setup of your listening environment. With the included measurement microphone, MultEQ XT32 analyzes the sound of each speaker (including subwoofers) up to eight measuring points and generates accurate digital filters that optimize the correct frequency and echo for each channel. Audyssey Dynamic Volume dampens disturbing volume jumps (in commercials, for example), so you can still enjoy clearly spoken words, music and sound effects at a lower volume level. Audyssey Dynamic EQ delivers clarity over the full range and at any listening level. Audyssey Low Frequency Containment uses advanced psychoacoustic algorithms to deliver full-range balance, including deep bass. This without bothering the neighbors or people in other areas. Audyssey Sub EQ HT lets you set the DPS filter of each of the two independent subwoofers separately for deeper bass with improved definition. Plus, with the Audyssey MultEQ Editor app (available for purchase), you can view and adjust your settings for fine-tuning. You can also adjust the sound even better to your space and preferences.
This app is available for iOS and Android.
RESET MEMORY OF DUAL SPEAKERS
With the new AVC-X4700H, you can store two separate sets of Audyssey settings as well as switch between the two settings in the blink of an eye, giving you even more freedom to customize your listening experience for the content or listening environment.
12V TRIGGER OUTPUT
Whether it's an automatic screen or projection control, the AVC-X4700H comes with two 12V trigger outputs that work even when the AV amplifier is on standby.
HEOS BUILT-IN FOR WIRELESS MUSIC STREAMING
Enjoy your favorite music wirelessly in every room of your house thanks to the built-in HEOS technology. You can choose to play the same song in all rooms or play a different song in each room. This amplifier also works with Amazon Alexa, Google Assistant and Apple Siri, providing all your home entertainment with high-quality voice control and great sound. Connect your Denon Home speakers and experience music throughout your home.
HEOS supports, Deezer, TuneIn, SoundCloud, TIDAL, the free and premium version of Spotify and more.
(These music services are not available in all regions.)
Ready for custom installation
The Denon AVC-X4700H offers the possibility for external control and IP control and can thus be easily adapted to external home automation systems. This type features IP control for integration with major third party control devices and also includes Control4 SDDP (Simple Device Protection Protocol) certification for smooth and easy integration with Control4 home automation systems. To ensure that the remote works flawlessly with other components in your home theater system, the rear panel of the AV receiver has an IR (infrared) connection for the remote control. In addition, problems can now be solved remotely.
Tech Specs
Multichannel Surround | |
| DTS HD Master / DTS:X | Yes / Yes |
| DTS Neural:X | Yes |
| Dolby TrueHD / Dolby Atmos/Dolby Atmos Height Virtualization | Yes / Yes / Yes |
| Dolby Surround | Yes |
| Auro 3D | Yes |
| Multichannel Stereo | Yes |
| Max Number of Processing (Preamp) Channels | 11.2 |
Sound Enhancements | |
| Discrete Power Amplifier | Yes |
| D.D.S.C. HD Digital | Yes (32 bit) |
| Pure Direct | Yes |
| Clock Jitter Reducer | Yes |
| Alpha Processing | AL32 Processing Multichannel |
| Audyssey | MultEQ XT32 |
| Audyssey Dynamic EQ / Dynamic Volume | Yes / Yes |
| Audyssey LFC | Yes |
| Compressed Audio Restorer | Yes |
Network | |
| Media Server | Yes |
| Lossy Formats: MP3 / WMA / AAC | Yes / Yes / Yes |
| Lossless Formats: FLAC / ALAC / WAV | Yes / Yes / Yes |
| DSD Audio Streaming | Yes (2.8/5.6MHz) |
| FLAC HD 192/24 | Yes |
| WAV 192/24 | Yes |
| ALAC 192/24 | Yes |
| Gapless playback | Yes (FLAC, WAV, ALAC ,DSD) |
| AirPlay Audio Streaming | Yes (AirPlay2) |
| Internet Radio | Yes (TuneIn) |
| Spotify* | Yes (connect) |
| Pandora | Yes |
| SiriusXM* | Yes |
| Compatible with Remote APP for Smart Phones | Denon 2016 AVR Remote |
| Ethernet Ports | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
HDMI | |
| HDMI Inputs: Back / Front | 7 / 1 |
| HDCP2.3 support | Yes |
| HDMI Outputs: Main / Zone | 2 / 1 |
| Video Conversion Analog -> HDMI | Yes |
| Analogue to HDMI scaling | 480i/576i up to 8K 60/50 |
| HDMI to HDMI Scaling | up to 8K 60/50 |
| GUI Overlay on HDMI | Yes |
| 3D Signal Pass-through | Yes |
| 8K signal pass-through / scaling / GUI overlay | Yes / Yes / Yes |
| 4K Signal Pass-through / Scaling / GUI Overlay | Yes / Yes / Yes |
| HDMI pass-though in standby mode | Yes |
| Picture Adjust / Noise Reduction | Yes / Yes |
| CEC | Yes |
| DSD Audio Capability | Yes |
| Audio Return Channel | Yes |
| Auto LipSync | Yes |
Multi-room CI | |
| Multiroom zones | 3 |
| Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog | Yes (2ch) / Yes (2ch) / Yes / Yes |
| Zone Audio Output: Speaker / Preout | Yes / Yes |
| Zone HDMI Output from HDMI Source | Yes |
| IP Control / RS232 Control / Web Control / App Control | Yes / Yes /Yes / Yes |
| Remote In / Out | Yes / Yes |
| DC Trigger Output | 2 |
Others | |
| Auto Speaker Setup by Microphone | Audyssey MultEQ XT32 |
| FL Display | 2 lines |
| Graphic User Interface - GUI | Advanced |
| ISF Certification | Yes |
| GUI Languages | 3 |
| Setup Assistent | Yes |
| Quick Select Plus | Yes |
| Variable Cross Over | Yes |
| Optimized Bass Redirection | Yes |
| Bass Sync | Yes |
| ECO Mode | Yes |
| Sleep Timer | Yes |

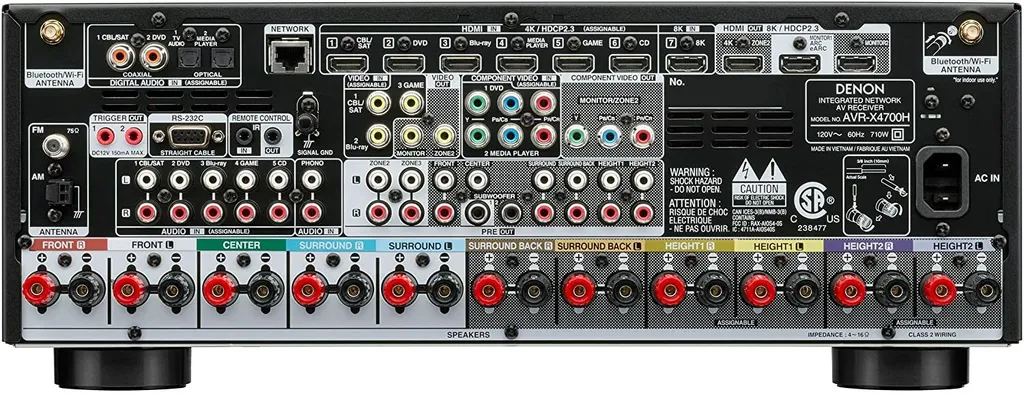

Inputs Outputs | |
| Composite In / Out | 3 / 2 |
| Component In / Out | 2 / 1 |
| HDMI In / Out | 7+1 / 3 |
| Multi-room Video Out: Video / HDMI | Yes / Yes |
| Analogue In | 5 |
| Phono (MM) In | Yes |
| Digital In: Optical / Coaxial | 2 / 2 |
| Multi-room Out: Analog | 2 |
| Multichannel Preout | Yes (11.2) |
| Subwoofer Out | 2 (independent) |
| Speaker Terminal: Regular Screw | Yes |
| Number of Speaker Terminals | 11 |
| Speaker A / B | assignable |
| Bi-amp Drive | assignable |
| Multi-Room Speaker Terminal | assignable |
| Front Inputs: HDMI / USB | Yes / Yes |
| USB Audio | Yes |
| AM/FM Tuner | Yes |
Specifications | |
| Number of Power Amps | 9 |
| Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) | 125 W |
| Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) | 165 W |
General | |
| Metal Front Panel | Yes |
| System Remote Control | RC-1240 |
| Pre-programmed | Yes |
| Power Consumption in W | 710 |
| Power Consumption No-Sound (ECO On / Off) in W | 65 W / 110 W |
| Standby Consumption in W | 0.1 |
| CEC Standby Consumption in W | 0.5 |
| Network Standby Consumption in W | 3.5 |
| Maximum Dimensions Antenna: Horizontal: (W x D x H) in Inches Antenna: Vertical: (W x D x H) in Inches W/O Antenna: (W x D x H) in Inches | 17.1 x 15.3 x 6.6 ( 17.1 x 15.3 x 9.3 ) 【 17.1 x 14.9 x 6.6 】 |
| Weight in LBS | 30.2 |
| Tuning frequency range | 520 kHz – 1710 kHz |
